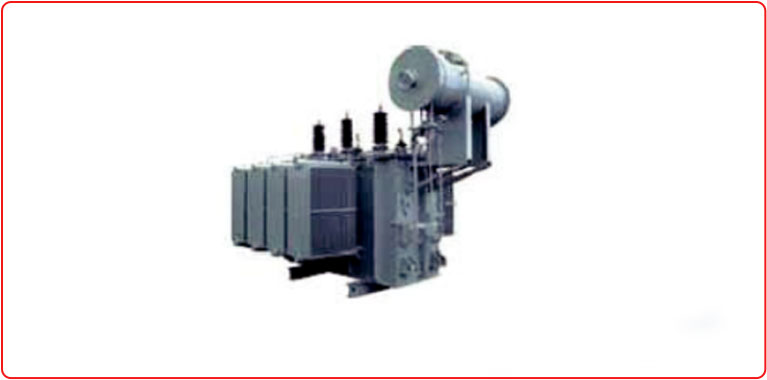

Oil-Immersed Power Transformer
Standards: IEC 60076-1, IEC 60076-2, IEC 60076-3, IEC 60076-5
Parameters:
Voltage Range: 66-750kV
Capacity Range: 5000Kva-650000kVA

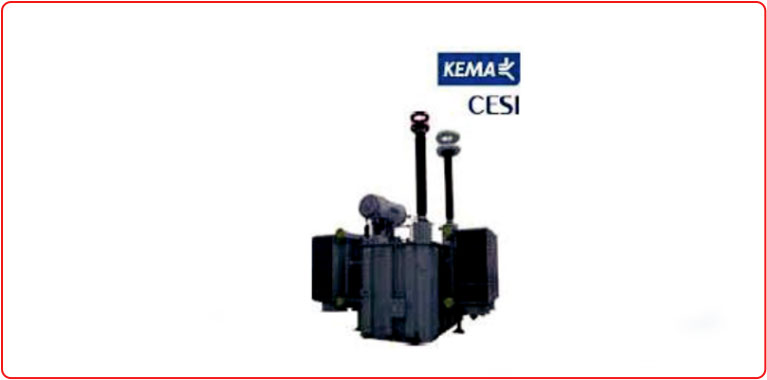

Oil-Immersed Distribution Transformer
Standards: IEC 60076-1, IEC 60076-2, IEC, 60076-3, IEC 60076-5
Parameters:
Rated Voltage: 66-750kV
Reactor

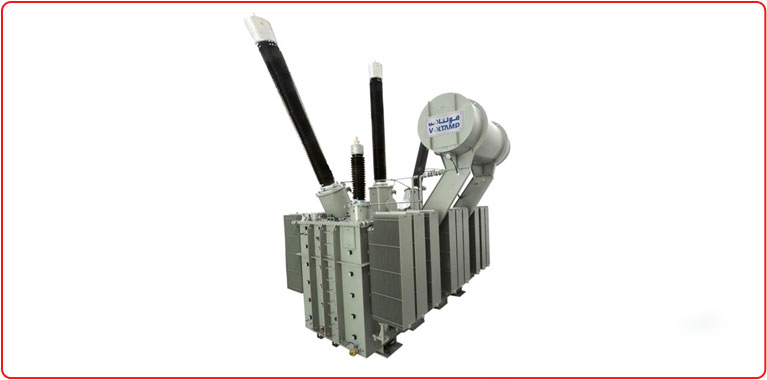

BKS,BKD HV Oil-Immersed Shunt Reactor
Standard: IEC 60076-6
Parameters:
Rated Voltage 35-330kV
Rated Capacity 5000-50000kVar

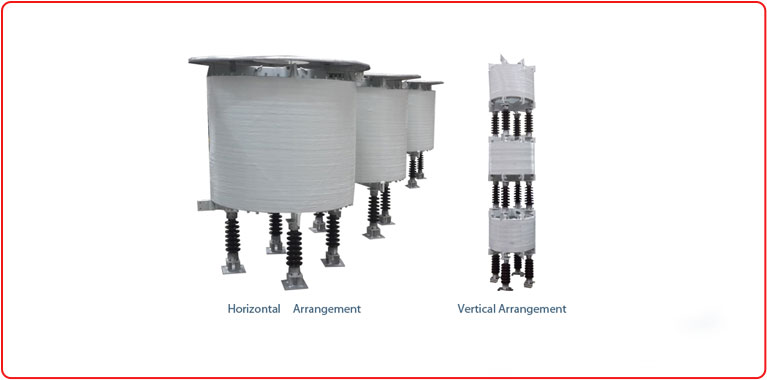

Dry –Type Air Core Reactor Series.
CKS (C,G), BKSC Dry-Type Core Series/ Shunt Reactor.
Standard: IEC 60076-6
Parameters:
Rated Voltage 6-66kV
Rated Capacity 50-20000kVar

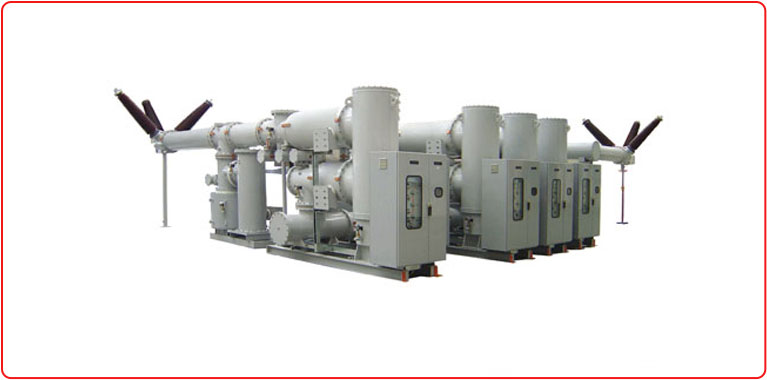

Gas Insulated Switchgear (GIS)
Standard: IEC 62271- 203
Parameters:
Rated Voltage 72.5-145kV
Rated Current:1250-4000A

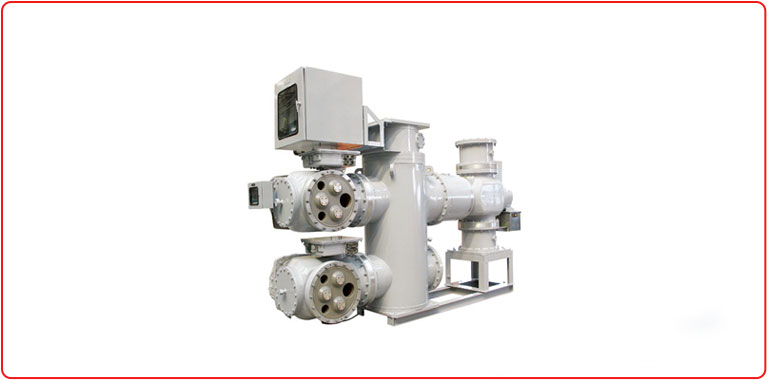

145kv Mini-Type Gas Insulated Switchgear (GIS)
Standard: IEC 62271-203
Parameters:
Rated Voltage 72.5-145kV
Rated Current:2500-3150A

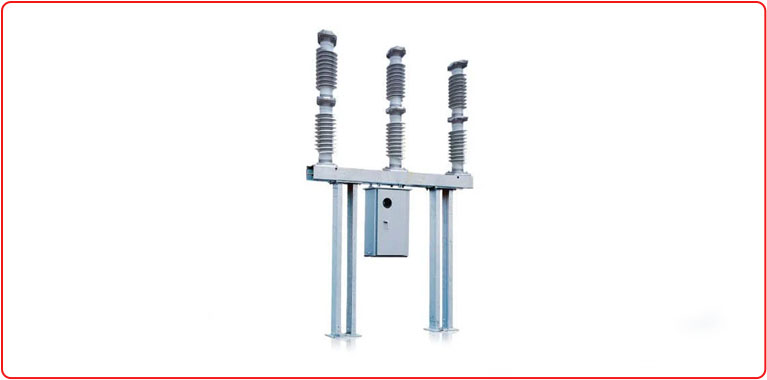

SF6 Circuit Breaker
Standards: IEC 62271-100
Parameters:
Rated Voltage: 145kV -252kV
Rated Current: 3150, 4000A

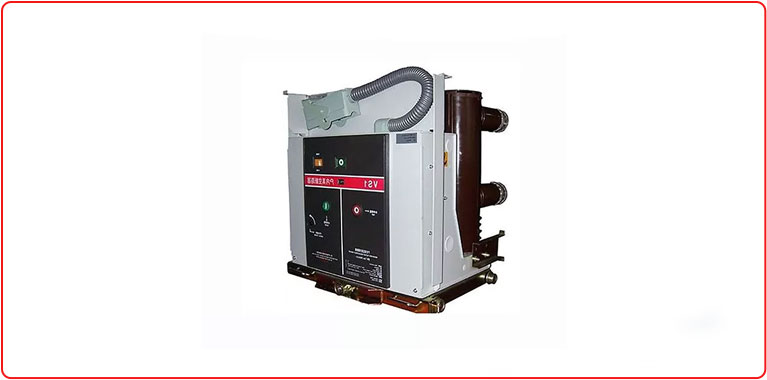

Indoor Vacuum Circuit Breaker
Standard: IEC 62271-100
Parameters:
Rated Voltage 12kV
Rated Current 630-5000A
Rated Short-Circuit Breaking Current 20-50kA

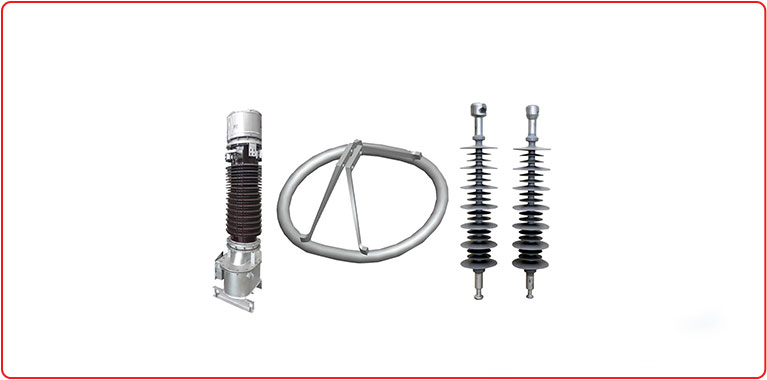

Others Include but Not Limited to the following:-
Insulators (66kV -500kV) Oil type Current Transformer
Current Transformers & Voltage Transformers Line Disconnectors & Isolators
Arcing Horn
Grading Ring
